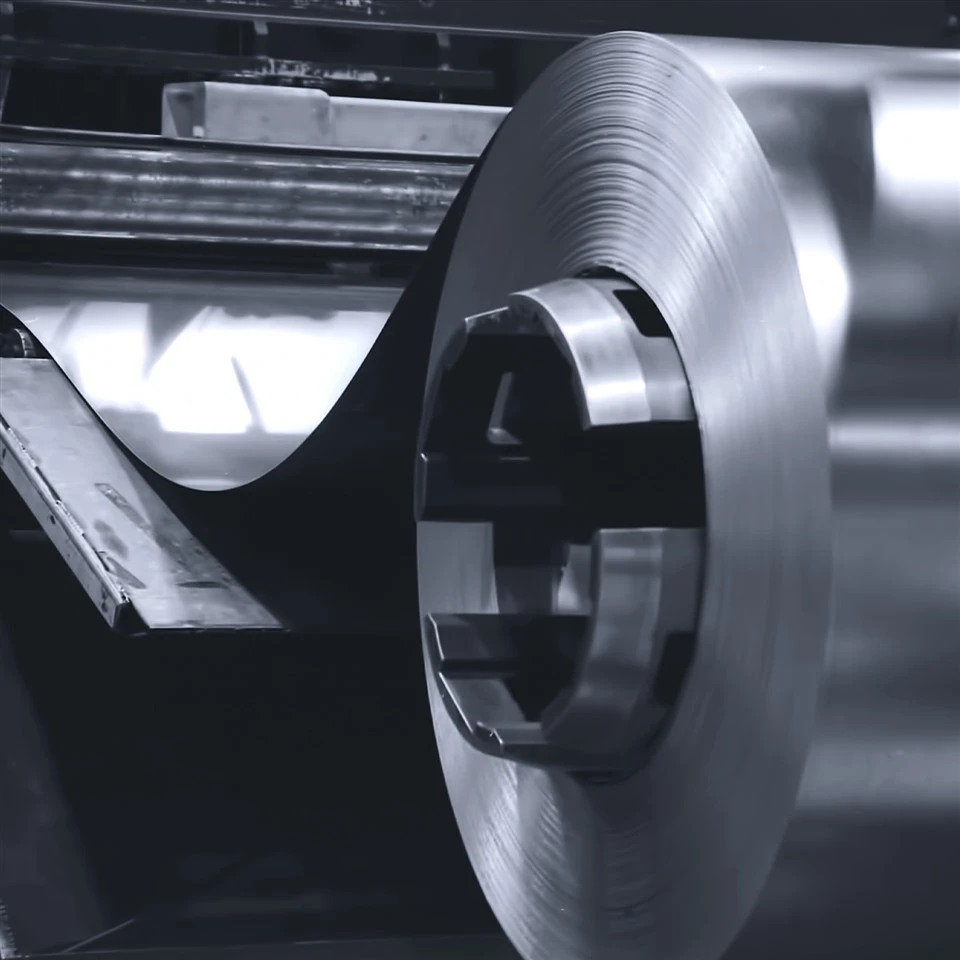

Stainless hlau kauj
Khoom siv: ASTM A240 / A240M, ASTM A480 / A480M, EN 10088-2
Khoom siv: Cold rolled coil, Kub dov coil
Txias dov thickness ntau: 0.30-6.35 hli
Kub dov thickness ntau: 1.98-12.7 mm
Dav dav: mus txog 1524 hli rau txias dov coil; 914-1524 hli rau kub dov kauj
Nto tiav: 2B, 2D, BA, No.3, No.4, No.1
Cov ntaub ntawv muab khoom: Master coil, slit coil, txiav - mus rau - daim ntawv ntev
Stainless hlau kaujyog ib lub tiaj dov stainless cov khoom nkag rau hauv daim ntawv txuas txuas ntxiv rau kev txiav, txiav - mus rau - ntev, yob txoj kev, vaj huam sib luag fabrication, tso tsheb hlau luam, cov khoom vaj tse, thiab cov khoom siv hauv qab welded. Rau feem ntau cov lus nug txog kev lag luam, ob qib uas tuaj ua ntej yog304 stainless hlau kaujthiab316 stainless hlau kauj. Qib 304 yog tus qauv18Cr-8Niaustenitic stainless hlau siv qhov zoo formability, weldability, thiab dav corrosion kuj yuav tsum tau. Qib 316 ntxiv2.0-3.0% molybdenum hmoovthiab ntau dua npib tsib xee, yog li nws feem ntau yog xaiv thaum qhov chaw pabcuam muaj cov tshuaj chloride ntau dua -cov kabmob lossis kev xav tau tshuaj lom neeg.
Rau stainless hlau coil xaj, cov lus nug tseem ceeb yog seb puas yog304tuaj yeem tswj qhov kev pabcuam tiag tiag lossis seb qhov project yuav tsum txav mus rau316txhawm rau txo qhov kev pheej hmoo corrosion ntawm welds, txiav npoo, crevices, thiab cov chaw ntub dej. Rau cov khoom siv sab hauv tsev, architectural trim kom deb ntawm cov ntsev raug, cov khoom vaj huam sib luag, thiab cov zaub mov dav dav -hu rau fabrication,304feem ntau yog thawj qhov kev xaiv. Rau cov ntug dej hiav txwv raug, chloride- bearing washdown, chemical process area, marine-cov khoom siv uas nyob ib sab, thiab cov dej ntxhia ntau dua los yog cov xov xwm tu,316feem ntau yog qhov pib muaj kev nyab xeeb dua.
Yam khoom siv ntau yam
Ob leeg 304 stainless hlau kauj thiab 316 stainless hlau kauj yog muaj nyob rau hauv txias dov thiab kub dov tej yam kev mob, nrog tiav muaj nyob ntawm thickness thiab ua txoj kev. Cold rolled coil feem ntau muab nkag rau hauv2B / 2D / BAthiab tej zaum kuj yuav ua rauNr.3/4ua tiav. Kub dov kauj yog feem ntau nkag rau hauvNo.1 tiavtom qab dov, annealing, thiab pickling. Nyob rau hauv ib qho chaw tsim khoom tam sim no, txias dov kauj yog qhia los ntawm0.012-0.250 nti (li 0.30-6.35 hli)nrog widths mus txog60 nti (1524mm)nyob ntawm thickness thiab tiav, thaum kub dov kauj yog qhia los ntawm0.078-0.500 nti (li 1.98-12.7 hli)hauv dav36-60 nyob rau hauv. (914-1524 mm). Muaj tseeb tseem nyob ntawm qib, tiav, thiab zeb txoj kev.
| Daim ntawv khoom | Kev Kawm Qib Siab | Hom Kev Ua Haujlwm tiav | Thickness ntau (mm) | Dav dav (mm) | Cov Lus Qhia |
|---|---|---|---|---|---|
| Cold dov kauj | 304 / 304L | 2B / 2D | 0.4-6.35 | 1000 / 1219.2 / 1250 / 1500 / 1524 | Rau qhov davNtau dua lossis sib npaug li 1300 mm, 2B/2D feem ntau0.5-6.35 hli |
| Cold dov kauj | 304 / 304L | BA | 0.4-1.6 | feem ntau nyob rau hauv tus qauv coil widths | Ci ntsa iab annealed txoj kev kom huv si, ntau reflective nto |
| Cold dov kauj | 304 / 304L | Nr.3/4 | 0.4-3.0 | feem ntau nyob rau hauv tus qauv coil widths | Polished txoj kev nyob ntawm qhov dav thiab tiav tiav |
| Cold dov kauj | 316L | 2B / 2D | 0.4-6.35 | 1000 / 1219.2 / 1250 / 1500 / 1524 | Rau qhov davNtau dua lossis sib npaug li 1300 mm, 2B/2D feem ntau0.7-6.35 hli |
| Cold dov kauj | 316L | BA | 0.4-1.6 | feem ntau nyob rau hauv tus qauv coil widths | Siv qhov twg smoother, ci ntsa iab tiav yog xav tau |
| Cold dov kauj | 316L | Nr.3/4 | 0.4-3.0 | feem ntau yog tus qauv - txoj kev dav | Polished muaj yog nqaim dua li lub hauv paus 2B / 2D |
| Kub dov kauj | 304 / 304L | No.1 | 3-16 | mus txog1524 | Rau trimmed kauj, lub tswv yim siab tshaj plaws yog feem ntau8mm ib; cov ntaub ntawv saum toj no uas tuaj yeem muab rau hauv daim ntawv coil nrog chemistry-tsuas yog ntawv pov thawj nyob ntawm txoj kev |
| Kub dov kauj | 316L | No.1 | 3-16 | mus txog1524 | Rau qhov dav>1400 hli, qhov qis kawg yog feem ntau3.5mm ib |
| Slit coil | 304 / 304L / 316L | nyob ntawm lub hauv paus tiav | raws li niam coil gauge | qhov project- tshwj xeeb qhov dav dav | Yam tsawg kawg nkaus slit dav feem ntau ua raws li ntsuas:10 hli (tsawg dua lossis sib npaug li 0.7 hli), 25 mm (>0.7-3.0 hli), 35 mm (>3.0-5.0 hli), 45 mm (>5.0-6.35 hli) |
304 thiab 316 Stainless Hlau Chev Specifications
Rau flat dov304 stainless hlau kaujASTM A240 / A240M muaj pes tsawg leegC max 0.07%, Mn max 2.0%, Si max 0.75%, P max 0.045%, S max 0.030%, Cr 17.5-19.5%, Ni 8.0-10.5%, N max 0.10%. Yam tsawg kawg nkaus txhua yam khoom yog feem ntau teev raws li515 MPa tensile lub zog, 205 MPa 0.2% pov thawj lub zog, thiab 40% elongationrau annealed tiaj dov khoom.
Rau flat dov316 stainless hlau kaujASTM A240 / A240M muaj pes tsawg leegC max 0.08%, Mn max 2.0%, Si max 0.75%, P max 0.045%, S max 0.030%, Cr 16.0-18.0%, Mo 2.0-3.0%, Ni 10.0-14.0%, N max 0.10%. Yam tsawg kawg nkaus txhua yam khoom yog feem ntau teev raws li515 MPa tensile lub zog, 205 MPa 0.2% pov thawj lub zog, thiab 40% elongationrau annealed tiaj dov khoom.
| Yam khoom | 304 Stainless hlau kauj | 316 Stainless hlau kauj |
|---|---|---|
| UNS | S30400 | S31600 |
| Main alloying logic | Cr-Ni | Cr-Ni-Mo |
| C max | 0.07% | 0.08% |
| Cr | 17.5-19.5% | 16.0-18.0% |
| Ni | 8.0-10.5% | 10.0-14.0% |
| Mo | - | 2.0-3.0% |
| Tensile zog min | 515 MPa ua | 515 MPa ua |
| 0.2% pov thawj lub zog min | 205 MPa | 205 MPa |
| Elongation min | 40% | 40% |
304 thiab 316 Stainless Hlau Chev Ua tiav thiab ua tiav
Kev ua tiav ntawm stainless hlau kauj tsis yog tshuaj pleev ib ce xwb. Nws qhia txog txoj hauv kev thiab cuam tshuam rau kev tsim khoom, kev huv, kev xav, thiab qee zaum kev coj cwj pwm hauv kev pabcuam. Raws li Euro Inox,1Dyog ib qho kub dov, annealed, descaled tiav siv rau ntawm daim ntawv tuab thiab phaj qhov zoo li theem nrab.2Dyog ib qho txias dov, kub kho, pickled matt tiav.2Byog tsim los ntawm 2D nrog lub teeb kawg dov dhau, muab cov xim grey tiav cov neeg yuav khoom feem ntau nug rau hauv kev lag luam thiab kev tsim khoom.2Ryog txoj kev ci ntsa iab annealed, muab qhov ua kom pom tseeb uas yooj yim dua los ntxuav.
Rau cov khoom siv coil, qhov no tseem ceeb hauv ob qho xwm txheej. Thawj yog thaum cov txheej txheem qis qis suav nrog polishing, txhuam hniav, lossis kho kom zoo nkauj; Nyob rau hauv tas li ntawd, pib nrog txoj cai zeb tiav txuag ntxiv rework. Qhov thib ob yog thaum kawg siv yog kev tu cev -sensitive lossis zoo li-sensitive. A2b cevfeem ntau yog tus qauv pib taw tes rau fabrication.PAB / 2Rmuaj ntau dua thaum muaj kev cuam tshuam thiab kev huv huv.No.4los yog txhuam tiav lawm feem ntau xaiv thaum qhov chaw yuav nyob twj ywm pom tom qab kev teeb tsa.

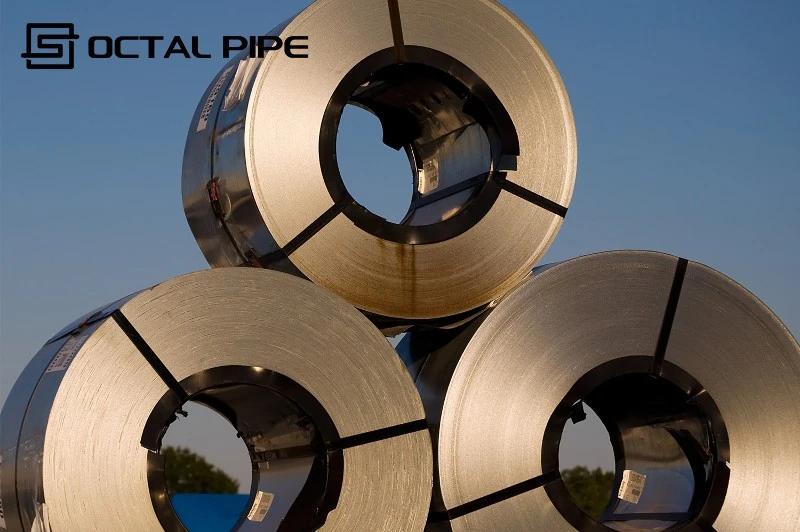

Rau cov neeg yuav khoom uas xav tau kev ua kom dav dav,stainless hlau coil stripyog tsim los ntawm slitting master coil mus rau qhov yuav tsum tau dav rau profileing, stampings, los yog raj zeb pub. Qhov no yog ib qho ntawm feem ntau txoj kev downstream thaum qhov kev txiav txim yog npaj rau kev nruam fabrication es tsis yog daim ntawv - los ntawm - daim ntawv ua.
Kev tsim khoom
| Kauj ruam | Txheej txheem | Yuav Ua Li Cas Nws Hloov Hauv Qhov Kawg Coil |
|---|---|---|
| 1 | Kub dov | Tsim cov sawb thiab teeb tsa qhov pib ntsuas rau kub dov kauj |
| 2 | Annealing + descaling / pickling | Restores qauv thiab tshem tawm oxide nplai |
| 3 | Txias dov | Tightens thickness tswj thiab txhim kho nto uniformity |
| 4 | Kev kho cua sov | Restores ductility tom qab txias txo |
| 5 | Daim tawv nqaij hla / lub teeb dov | Ua tus smoother2Bnto |
| 6 | Bright annealing | Tsim tawmPAB / 2Rsiab -reflective tiav |
| 7 | Slitting / txiav- mus rau -ntev / zaj duab xis txheej | Txuas lub coil mus rau qhov chaw tsim khoom hauv qab |
304 vs 316 Stainless hlau kauj
Qhov txawv ntawm304 stainless hlau kaujthiab316 stainless hlau kaujtsis yog chemistry xwb. Nws yuav pom thaum lub kauj yog txiav, tsim, welded, thiab raug rau cov kev pab cuam tiag tiag. Qib 304 tseem yog tus qauv xaiv rau kev tsim khoom siv dav vim nws muaj kev tiv thaiv corrosion zoo, weldability zoo, thiab ruaj khov ua haujlwm. Qib 316 raug xaiv thaum cov tshuaj chloride- bearing noo noo, tshuaj ntxuav cov ntaub ntawv, los yog aggressive water exposure ua rau cov kev pab cuam ib puag ncig tsis zam txim.
Ib qho piv txwv zoo yog qhov sib txawv ntawm lub vaj huam sib luag khoom noj khoom haus sab hauv tsev thiab cov ntug dej hiav txwv lossis tshuaj lom neeg - txheej txheem fabrication. A304 stainless hlau kaujfeem ntau txaus rau cov khoom siv hauv chav ua noj, cov khoom siv vaj huam sib luag, thiab cov vaj tsev nyob sab hauv. Thaum cov khoom raug tsim los rau hauv cov ntim tshuaj, marine- cov khoom siv uas nyob ib sab, kev tsim sab nrauv ze ze rau qhov raug ntsev, lossis cov khoom siv uas raug tshuaj chloride ntxuav,316 stainless hlau kaujfeem ntau tsim nyog rau kev txhim kho vim hais tias ib puag ncig, tsis tsuas yog cov khoom siv tus nqi, feem ntau tsav tsis ua haujlwm.
Uas tau hais tias, 316 tsis yog lus teb rau txhua qhov kev pabcuam corrosive. Cov kev taw qhia pej xeem corrosion kuj tseem sau tseg tias cov qauv austenitic qib xws li304Lthiab316Ltseem tuaj yeem nkag siab rauchloride-induced stress corrosion cracking at high temperature. Yog li yog tias qhov kev pabcuam yog ob qho tib si chloride- nplua nuj thiab kub, qhov kev txiav txim siab qib yuav tsum tau txav mus dhau tus qauv 304/316 kauj thiab mus rau qhov siab dua - alloy lossis duplex txoj kev.
304 thiab 316 Stainless Hlau Chev Daim Ntawv Thov
304 Stainless hlau kauj
304 stainless hlau kaujfeem ntau yog siv rautso tsheb hlau luam, cov khoom vaj tse, cov txheej txheem npog, kev lag luam hauv chav ua noj, dab dej, cov khoom siv vaj huam sib luag, thiab cov ntawv welded dav -cov khoom siv hlauqhov twg huv si sib sau, ruaj khov vuam, thiab dav corrosion kuj yuav tsum tau. Nws yog qhov kev xaiv tswv yim rau qhov chaw uas yuav yogtxiav, khoov, dov, stamped, los yog maj mam polishedthaum lub sij hawm fabrication, tshwj xeeb tshaj yog thaum qhov kev pab cuam ib puag ncig yog nyob rau hauv tsev los yog tsuas yog me ntsis corrosive.
Nws kuj yog siv dav rauzaub mov-cov khoom sib cuag, cov khoom siv sab hauv tsev, lub teeb- ntsuas qhov chaw tsim khoom, thiab kev tsim vaj tsevmuab tso tseg los ntawm kev raug ntsev ncaj qha. Hauv cov ntawv thov no, tus nqi tseem ceeb ntawm 304 yog tias nws muaj qhov sib npaug zoo ntawmnto tiav, fabrication stability, thiab tswj tus nqiyam tsis hloov mus rau qib siab dua - alloy.

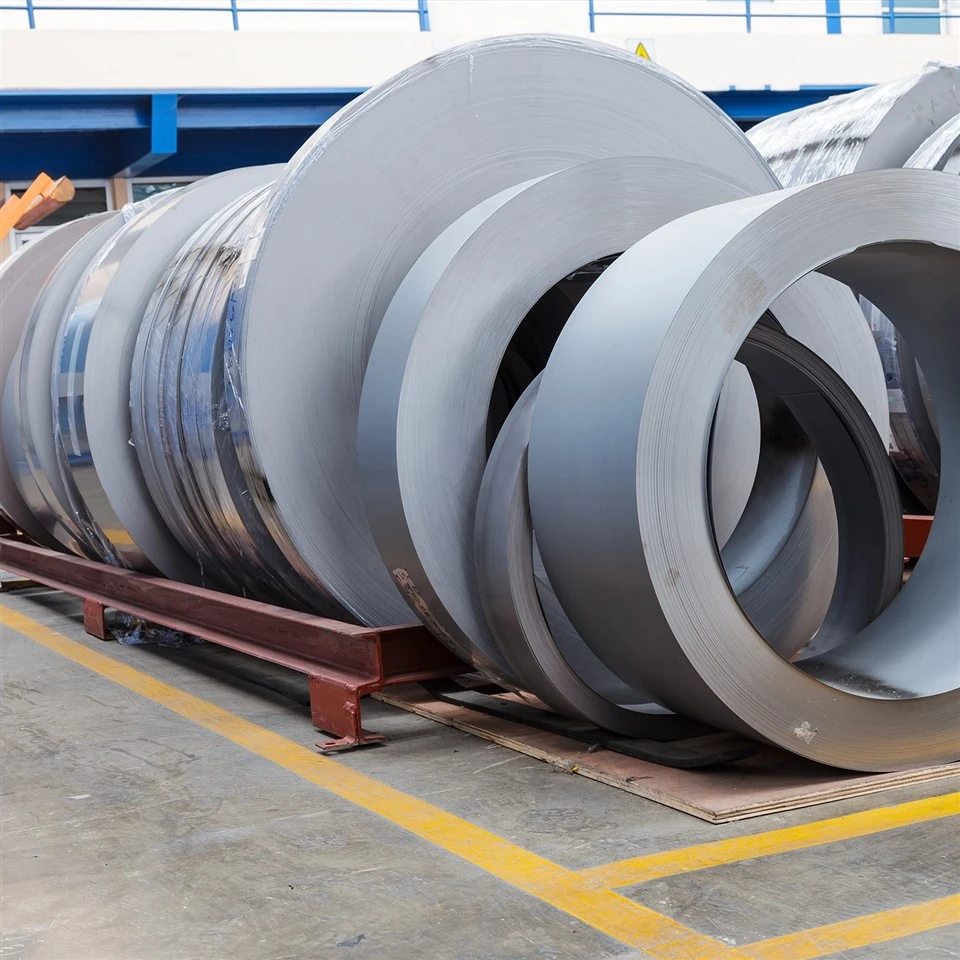

316 Stainless hlau kauj
316 stainless hlau kaujyog tsim nyog rau qhov chaw raugchloride- bearing washdown, tshuaj tiv tauj, huab cua ntug hiav txwv dej, dej- kev kho mob, lim cov ntxaij vab tshaus, tso tsheb hlau luam, thiab marine- nyob ib sab fabrication. Nws feem ntau xaiv thaum qhov ua tiav yuav tsum nyob hauv ntub dej rau lub sijhawm ntev, pom cov tshuaj ntxuav ntau dua, lossis ua haujlwm nyob rau hauv qhov chaw uas txiav npoo, qhov chaw vuam, thiab cov crevices feem ntau yuav ntsib kev pheej hmoo corrosion.
Qhov no ua rau 316 qhov pib zoo dua rau kev tsim khoom siv hauvCov txheej txheem tshuaj lom neeg, kev teeb tsa ntawm ntug dej hiav txwv, dej- tuav tswj, thiab corrosion{1}} kev pabcuam sab nraum zoov. Qhov twg ib puag ncig yog hnyav dua li cov khoom siv sab hauv tsev, qhov ntxiv alloying nyob rau hauv 316 pab muab qhov zoo tshaj plaws corrosion margin tshaj 304.Rau tej yaam num uas xav tau los ze zog saib ntawm lubtsev neeg qib 316, saib316L, 316Ti, thiab 316H stainless hlau.
Vim li cas thiaj xaiv Octal Pipe
Rau304 thiab 316 stainless hlau kaujkev txiav txim, qhov txiaj ntsig tiag tiag tsis yog tsuas yog muab cov qib nws tus kheej xwb, tab sis tswj kev txiav txim ua ntej nws mus txog ntau lawm. Octal Pipe tuaj yeem pab kho cov khoom ntawm cov ntsiab lus uas feem ntau tsim teeb meem hauv qab:qib, tiav, thickness, dav, slit dav, tiv thaiv nto, thiab muab daim ntawvxws limaster coil, slit coil, los yog txiav - mus rau - daim ntawv ntev. Qhov no ua rau cov ntaub ntawv yooj yim dua los ua ke nrog yob txoj kev, vaj huam sib luag fabrication, raj ua, los yog cov ntawv dav dav -kev ua hlau.
Qhov no tseem ceeb tshwj xeeb tshaj yog thaum ib qhov project suav nrog ntau tshaj ib txoj kev, xws li304 stainless hlau kaujrau general fabrication,316 stainless hlau kaujrau ntau corrosive kev pab cuam, thiabstainless hlau coil striprau nqaim - dav ua. Kev tswj xyuas kom meej ntawm cov ntsiab lus no yuav pab txo qis cov teeb meem xws li kev xaiv ua tiav tsis raug, qhov dav qhov tsis zoo, kev tiv thaiv nto tsis sib xws, lossis kev hloov kho kev cob qhia ntxiv tom qab tuaj txog.
Octal Yeeb Nkab kuj txhawb nqa qhov kev txiav txim los ntawm kev tso tawm sab, qhov twg ntau coil tej yaam num raug ncua los ntawm kev ua lag luam tsis tiav thiab kev sib raug zoo. Ib pob khoom kom meej dua txhais tau tias cov khoom tuaj yeem raug tshuaj xyuas raws li qhov xav tautxheem, tiav, qhov ntev, packing method, thiab traceability cov ntaub ntawvua ntej xa khoom xa tuaj, ua kom tau txais, khaws cia, thiab kev ua haujlwm qis qis kom tswj tau yooj yim dua.
FAQ
01.Kuv yuav xaiv li cas ntawm 304 stainless hlau kauj thiab 316 stainless hlau kauj?
02.Dab tsi tiav yog feem ntau txiav txim rau stainless hlau kauj?
03.Dab tsi yuav tsum tau kho ntawm RFQ lossis PO ua ntej xaj stainless hlau kauj?
04.Puas stainless hlau kauj tuaj yeem muab los ua cov kauj lossis cov hlua khi rau cov raj thiab nqaim - dav fabrication?
